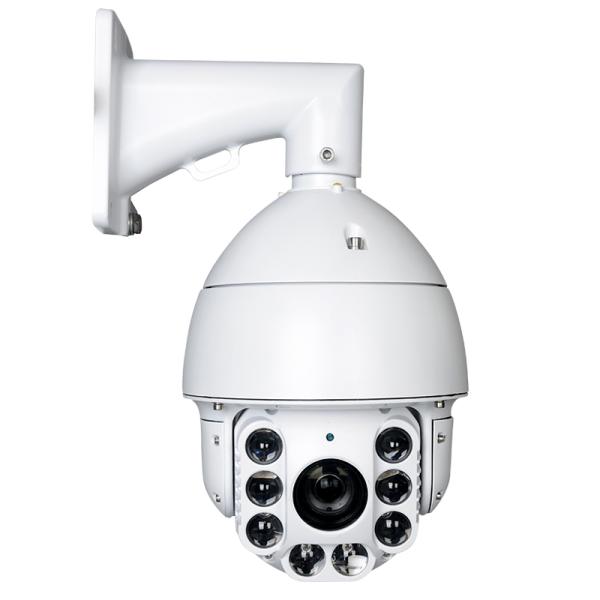

6 inch High Speed IP PTZ Camera 18x CV-XIP-BGX1

Brand Name : ICUseguranty

Model Number : CV-XIP-BGX2

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union, Paypal, L/C

Supply Ability : 6000/ month

Delivery Time : 5-7 working days

Packaging Details : Retail Packaging

Type : Digital Camera

Style : Dome Camera

Sensor : CMOS

Technology : Pan / Tilt / Zoom

Special Features : Waterproof / Weatherproof

IR LEDS : 4pcs OSRAM IR Array LEDs,4pcs laser LEDs,IR Distance 200M

IP66 : YES

ONVIF : YES

Resolution : 1280(H)x960(V)

POE : Optional

Contact Now

●4pcs OSRAM IR Array LEDs,4pcs laser LEDs,IR Distance 200M
●18x optical zoom(F=4.7~84.6mm)
●Horizontal Rotation Speed 0.01°～240°/s, Vertical rotation speed 0.01°～180°/s；
●ONVIF protocol ,Support most NVR like Hikvision,Dahua
●Support P2P,mobile remote&3D positioning
●With Audio IN/OUT
●Support POE (Optional)
●Preset cruise, pattern scanning,area scanning, 360°horizontal scanning
●Housing:Aluminum die casting shield
●Power Supply:DC12V-4A

Model	CV-XIP-BGX1
Camera
Image sensor	1/3" CMOS
Minimum Illumination	color:0.05Lux,Black:0.01Lux,0 Lux with IR
3D DNR	Yes
WDR	1/7.5s—1/2000s,AUTO
Electronic shutter	yes
Day night mode	Auto ICR color to B/W
focus	4.7-94mm,18X Optical zoom
Max resolution	1280X960
Main stream	(1280×960),(1280×720),(800×600),(704×576)
Sub-stream	25fps:(704×576),(640×480),(648×360)
Video compression	H.264,H.264_BASELINE H.264_Main profile
Network protocol	HTTP ,FTP,SMTP,UPnP,SNMP,DDNS,NTP,RTSP,RTP,TCP,DHCP,PPPoE
interface	ONVIF 2.0,GB/T.28181
PTZ
IR Distance	200m
Horizontal scan	0°～360°continuously
Vertical range	-15°～90°(auto flip)
Horizontal speed	0.05°～240°/s
Vertical speed	0.05°～120°/s
Max speed	240°/S
preset	256
Patrol scan	4pcs(10 preset for each)
R/L Scan	1
Horizontal scan	1
POWER UP ACT	Watch position/L/R Scan/Horizontal 360°scan/Patrol scan
PARK ACT	Watch position/L/R Scan/Horizontal 360°scan/Patrol scan
Watch position	1
General
Power	standardDC 12V/4A
Consumption	＜40W
Working environment	temp-20～60℃；humidity＜90%
Protection	IP66,4000V anti surge and lightning
weight	4kg
size	610mm×315mm×430mm

6 inch High Speed IP PTZ Camera 18x CV-XIP-BGX1

6 inch High Speed IP PTZ Camera 18x CV-XIP-BGX1 Images
